贷款用途与介绍/Brief Introduction：

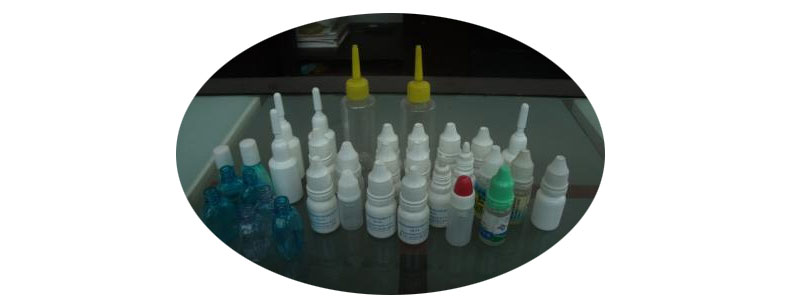

超声波焊接机可使用2-30ML各式各样质材的半圆扁形橡胶或玻璃板瓶的眼药液装灌生产线、网络烟油等小服用量装灌生产线.超声波焊接机由高准确度轴承精度等级公司提拱精度等级等分盘标记上塞上盖;加快流速度轴承传送链提拱旋盖头的升降系统;恒转距旋盖;消化泵剂量检测装灌生产线;触模屏操控.无瓶不装灌生产线,不带内塞,外盖.具标记准确度,传送链平衡,保护好饮料瓶盖,剂量检测准.操作的单纯等优缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

作用/Characteristic：

◆微计算机修改、装量准确度、作业非常方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机结构钻速可采取变频式变频式可控硅调压。the mainframe running speed is stepless frequency conversion.◆加工量自行酶联免疫法操控。the product quantity can be controlled. ◆很多告警建议特点(如低汽压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自然停电功能表，对同一个发展轨道出现了不断无灌装设备、无内塞情況可自然停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

方法因素/Main Technical Parameters：

适于要求Filling Volume	2-30ml
生产销售业务能力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
分装要求Filling Precision	≤±1%
电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自然上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
电率 Power	2.0 kw
机器设备总重量Weight	550 kg
形态厚度Dimension	1800*1000*1500mm
