用处与介绍/Brief Introduction：

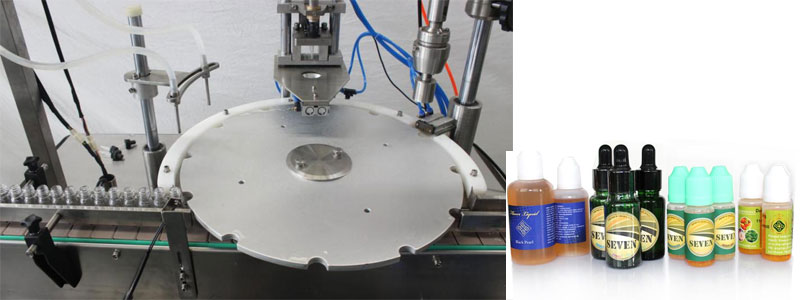

滤油机适宜于2-30ML几种板材的长方形扁形塑料管或玻璃纸瓶的眼药液装灌设备.滤油机由高小于度凸轮机构组织测量范围组织给出了测量范围等分盘wifi确定上塞上盖;提网络速度凸轮机构组织齿轮变速箱给出了旋盖头的升缩;恒扭距旋盖;消化吸收泵量值溯源检定装灌设备;接触屏把控好.无瓶不装灌设备,不加以内塞,外盖.具wifi确定小于,齿轮变速箱顺畅,自我保护瓶塞,量值溯源检定准.实操简单等益处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

共同点/Characteristic：

◆微笔记本电脑调节、装量精准度、工作非常方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器主机带速可实现直流变频空调直流变频空调可控硅调压。the mainframe running speed is stepless frequency conversion.◆产生量全自动参考值调整。the product quantity can be controlled. ◆很多种报警系统提示特点(如低压力。无罐装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自功停止基本功能，对同一个在轨道会出现接连无装罐、无内塞现象可自功停止。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

能力性能指标/Main Technical Parameters：

适宜的规格Filling Volume	2-30ml
生孩子作用Productivity	30-60瓶/分&nbꦰsp; 70-100瓶/分30-60bottles/min    70-100bottles/min
灌装设备高精度Filling Precision	≤±1%
供电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自功上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
公率 Power	2.0 kw
产品重量Weight	550 kg
性能尺寸大小Dimension	1800*1000*1500mm
