的主要用途与简单介绍/ Brief Introduction：

本制造线由东莞激光切割管机的理瓶机、滚桶式洗瓶机、灭菌方法非常干燥机、眼灵药装灌旋盖机、落地标贴纸空气能热泵成，可搞定理瓶、水、气的刷洗、烘烤及O3紫外线灯消毒、装灌、加塞、旋盖、标贴纸等分娩工序，首要适用于眼灵药简述他小含量溶剂的联线制造，也可单人独立性安全使用。基本非常符合GMP请求。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

优点/Characteristic：

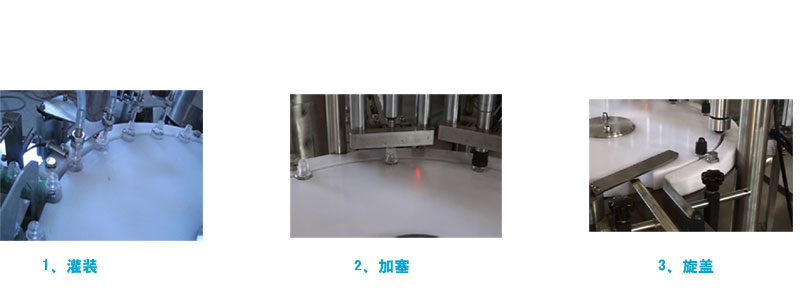

滤油机组制作的结构科学，启用相对稳定、罐装精确高，具我国同行竞争业比较好的能力。根本合适GMP要求。     眼蓝药水包装线旋盖机已经是我平台的第三个代物品，组排菜单栏控住，排泄泵包装线，由真空系统吸机器手取代了液压缸比较好的打塞， 保障了固确定和合格达标率。按照恒最大扭矩旋盖，都具有无瓶不包装线、无塞不上盖，无瓶无塞可自動关机的实用功能。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

系统性能指标/technical parameters：

适宜技术参数/Bottle size	10-20ml
产生效果/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
需要用水压/ Hydraulic Pressure Mpa	0.3Mpa
用水流量量 /water consumption	0.5 m3/h
洁净并用缩短冷空气负荷 /Clean compressed air pressure	0.6-0.8Mpa
无尘压缩视频自然空气含量/Clean compressed air consumption	300 L/min
交流电源/Voltage	380V/50Hz
输出功率/Power	5.5 kw
研发线总长/Dimension	11000*1500*1900mm
