妙用与间介：/Purpose and introduction

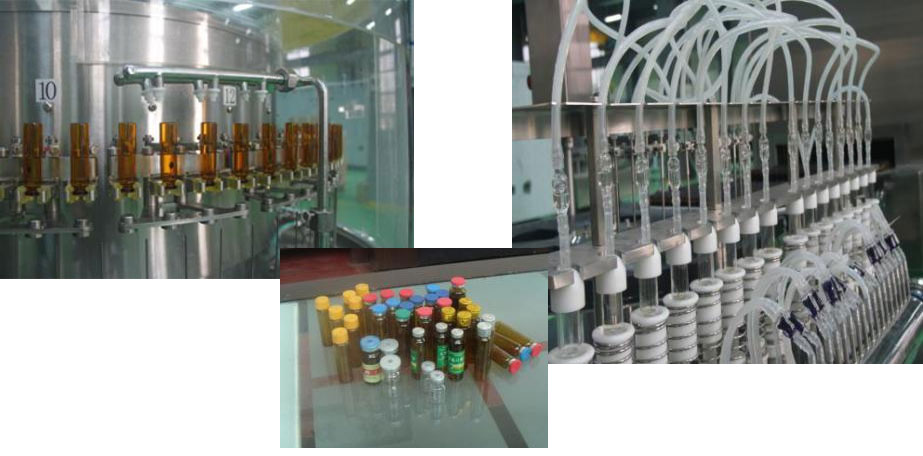

原浆、油类液洗烘灌轧一体化线由卧式超音波波洗瓶机、铁路隧道式热气 循环系统过滤除菌干燥箱、原浆、油类液分装轧盖机等组合成，适宜于 5-30ml 等与众不同规 格原浆、油类液瓶的产量。可结束对otc药品产量中安瓿瓶淋水、超音波波洗掉、冲水、充 气、真空干燥过滤除菌、保压、分装、轧盖等工艺技术部骤的一体化加载。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优点:/characteristic

◆洗瓶机选择自动化设备手夹瓶，用于多种多样规格型号的玻璃瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶主要包括水汽喷针反复追踪导入手段，冲洗疗效好，得节约生物质能。并具有针架防颤抖设备，不断提高喷针导入玻璃瓶的精准度，削减断针现状的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶另一水雾导压管、喷针完完全全孤立分类建立，杜绝了相互危害，符合标准GMP原则耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杆前可以加装部件实现储存块，有保护区丝杆，限制碎瓶效果Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶选取纵向进品同步操作带，拼接拨块输料服用液，作业增强是真的吗In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱适用红外线热处理管，装饰管热处理管双层玻璃热处理湿度不光滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆包装轧盖机可供选择配卫浴陶瓷泵、装饰管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖系统。Pieces filling without bottle filling, no bottle no rolling function.◆整线选择PLC总把握、交流伺服驱动器、触感屏把握技木，作业安稳是真的吗。触感屏可彰显各手机单机的作业模式，各把握点的水管打压、标准气压、静压、的温度等彰显，各开关按钮模式和故章彰显，故章自行疾病诊断和故章分享及清除做法。使某个制造过程中 提高自己化把握，联线存在三机电气发展设施，以确保制造多样化是真的吗。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.选择企业客户的都要，还可供加配：According to the needs of customers, but also available for selection:◆PLC、施耐德开关、西门子、台达等国产品牌操控软件；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气的压力、油温及超声清洗波承载力、尘土水粒子、风量在线免费查重、报案、统计、印刷机系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无茵消毒器软件系统。Mixer ORABS, CRABS, aseptic isolator system.

技术应用基本参数：technical parameters

采用型号规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装线表面粗糙度Filling accuracy(%)	≤ ± 2.5
装灌头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖适合率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
