的主要用途与简单/Purpose and introduction：

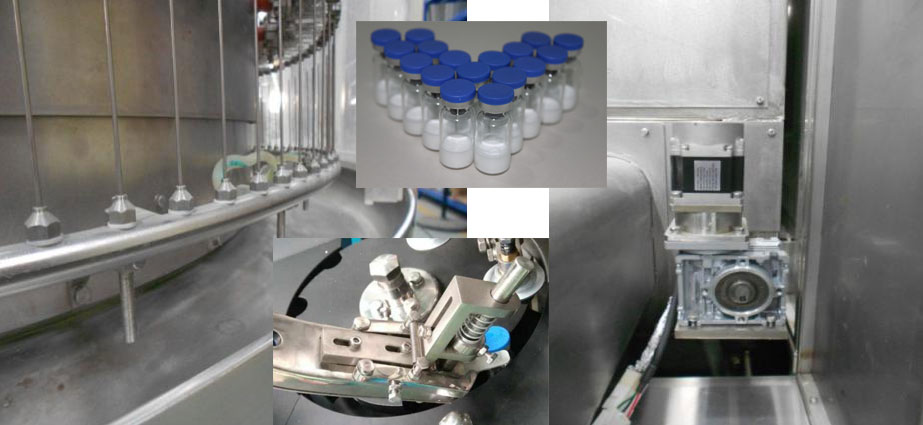

NQGF型西林瓶粉针洗烘散装轧盖标贴一体化线 由QCL系直列V型高周波波洗瓶机、AQMR随道式自动空调不断循环法消毒方法烘烤箱、NQFGX系数车螺母粉剂散装机、NQ-50轧盖机、NQWTB-120标贴设备成，也可电脑单机便用。好于7-25ml规格尺寸的西林瓶粉针的生产制造。能实现喷淋头充水、高周波波粗洗、瓶侧壁水喷洗器、瓶壁有连着分次不断循环法水喷洗器、一回吹气、一回剥好水喷洗器、连着分次吹气、瓶侧壁吹气、洁净、发动机预热、烘干箱消毒方法去热原、保压、散装、加塞、轧盖、标贴等二十几个道工序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特别/characteristic：

◆洗瓶机采取机制手夹瓶，符合多种不同规格为的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶用到水蒸汽喷针往复运动追踪添加手段，清洁功效好，节省资源。并下设针架防颤动提升装置，升高喷针添加瓶盖的合理度，抑制断针情况形成；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部雾水压缩空气管道、喷针彻底独力分着，解决了平行感染，适用GMP规范化条件；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆式前加设缓解块，有保护措施螺丝杆式，减低碎瓶使用；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶主要包括建筑体进口量同部带，连接方式拨瓶块输料西林瓶，运营相对稳定是真的吗；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘干箱采用了热气反复热处理加热，环境温度平滑，绿色建筑；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆恒温干燥箱设置有防时不时关电爱护基本功能。作业安全卫生；Mixer oven has suddenly loses power protection function. Run security;◆烤箱可配巡环水冷散热器仪器，不不足小房间内排风量，减低小房间内的差压不平衡点的高风险降热治疗效果要好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烤箱可配差压半自动不静态平衡量调试设计才能减少卧室和烤箱的差压不不静态平衡量会造成的高工作温度段位移，罐装间洗烘间工作温度升高效一全系列的相关问题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烤箱设置有DOP判断接口方式(还包括气压、风力、浮尘物体判断口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆干燥箱冷却水段可带百度在线灭菌方法功能表(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆干燥箱网带可带超声清洁工作牵连CIP线下清洁工作系统软件；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘烤箱内腔室可做全东南方向、多视角高压变压器水清洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆全自动灌装机机主要采用国.际更专业的来设计价值取向，兼有稳定度，同时还分瓶精确性，拆换规格型号件便利；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆包装机选取互动台达伺服交流接触器交流接触器带动包装螺栓旋轉，装量精确度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开装袋机主要包括装量的优化单独在接触屏上完成；Mixer packer adopts the load adjustment directly on a touch screen;◆散装机先选配百级反复式层流罩；Mixer packer optional circulating laminar flow hood best level;◆包装机无瓶关闭包装，无瓶不用塞功用。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线用于PLC总操控、伺服电机器、接触屏操控技术设备，运营稳定性高靠谱。接触屏可展现各手机单机的运营状况，各操控点的压力、风压差、风压差、温等展现，各打开状况和发动机故章问题展现，发动机故章问题自身程度和发动机故章问题了解及除掉的方法。使整个的生產的步骤高于智能化操控，联线兼有自动控制平衡量安全装置，可以保障生產的平均靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.会根据客人的可以，还可供选装：According to the needs of customers, but also available for selection:◆西门子程序、施耐德开关、三菱PLC、台达等加盟品牌调控程序；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气心理压力、水溫及超声检查波效果、尘土微粒、风压线上探测、提醒、计录、缩印系統；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌操作隔绝器设备。ORABS, CRABS, aseptic isolator system.

技木参数设置：/technical parameters

应用 model

生產工作能力production capacity

洗瓶符合标准率Washing bottle percent of pass

洗瓶磨损率Washing bottle breakage

灭菌处理热度sterilizing temperature

分开装袋数据误差The repackaging of error

加塞适合率Gasser percent of pass

水汽层流是否干钻戒颜色Laminar air cleanliness

涡流抽速Vacuum pumping speed

电解电容量 capacitance

主机电源power supply

总用电量Total transmission energy

外观规格boundary dimension

7-25ML国家行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
